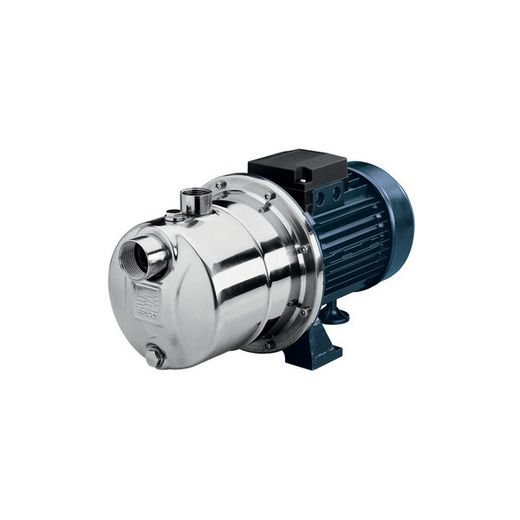

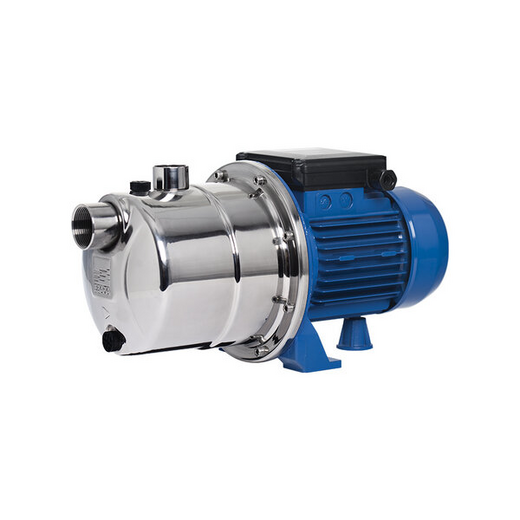

JESX - JEX

Pompă centrifugă de suprafață autoamorsantă, din oțel inoxidabil AISI 304, potrivită pentru uz casnic.

Caracteristici

Practică și ușor de utilizat

Ușoară și ușor de transportat

CATEGORIE: Popmpe automorsante
DOMENII DE APLICARE: AGRICULTURA si IRIGATII, COMERCIAL, REZIDENTIAL

Self-priming surface pump in AISI 304 stainless steel. The small size and lightness of the structure make it suitable for the domestic sector.

Drinking water supply
Domestic pressurisation
Emptying of tanks and swimming pools
Garden irrigation systems
Handling of clean water

For further technical information see the Databook

Technical data

Flow rate	from 0.3 to 4.5 m³/h
Total head	from 11.5 to 49 m
Max. working pressure	6 bar
Max. temperature of the liquid	45°C
Max. suction depth	8 m
Poles	2
Insulation class	F
Protection degree	IP54 (IP55 on request)
Voltage	Single-phase 1~230V ±10% Three-phase 3~230/400V ±10%

Materials

Pump body	Stainless steel AISI 304 (EN 1.4301)
Impeller	Stainless steel AISI 304 (EN 1.4301) for JEX PPE+PS with glass fibres for JESX
Shaft	Stainless steel AISI 303 (EN 1.4305) (part in contact with liquid)
Mechanical seal	Ceramic/Carbon/NBR (standard)
Motor support	Aluminium

The 3D models are indicative and may not perfectly correspond to the real dimensions of the product. For further information, consult the sales network/TCS
